Ultrasonic Testing for 5-Year Fire Sprinkler Inspections: What You Need to Know

Posted by Engineered Corrosion Solutions on Jul 22, 2025 4:44:44 PM

When it comes to protecting life and property, there’s no room for shortcuts—especially in fire protection. That’s why the 5-year internal inspection requirement in NFPA 25 exists: to ensure that sprinkler piping remains clear of corrosion, obstructions, and foreign materials that could prevent water from reaching a fire.

As this crucial inspection cycle comes around, many building owners and contractors explore alternative methods like ultrasonic testing (UT) to reduce disruption, cost, and time. But is ultrasonic testing truly a reliable substitute for traditional internal pipe evaluations?

Let's explore what’s permitted under NFPA 25, examine industry perspectives on ultrasonic testing, and learn why direct internal inspection remains the gold standard.



Understanding NFPA 25 Internal Assessment Requirements

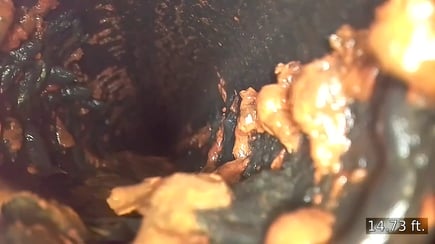

air-water corrosion stillEvery five years, fire sprinkler systems must undergo an internal pipe assessment as mandated by NFPA 25: Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems. This 5-year internal assessment is intended to uncover any corrosion, tuberculation, or foreign material inside sprinkler piping that could obstruct water flow and impair sprinkler performance. NFPA 25, Section 14.2.1.1 emphasizes that the purpose of the internal assessment is to evaluate the presence of foreign organic or inorganic materials that might lead to pipe or sprinkler obstructions. In other words, the goal is not just to check pipe integrity, but to find any sludge, scale, debris, or corrosion byproducts that could block sprinklers or pipe sections.

Traditionally, this internal inspection involves draining the system and opening up piping at select points (such as a main flush connection and a branch line) for a direct visual examination of the interior. Inspectors look for signs of rust, tubercles (mounds of corrosion), slime (biofilm), or any foreign objects and sediment. If significant obstructions or corrosion are found, NFPA 25 requires a more extensive obstruction investigation to determine how far and wide the problems extend. The five-year internal assessment has been a requirement since NFPA 25’s inception (and even earlier in predecessor standards) to ensure hidden issues are caught before they cause sprinkler failures.

NFPA 25 and Ultrasonic Testing: Permitted, But Not Preferred

Recognizing that completely disassembling pipes is labor-intensive and disruptive, NFPA 25 does allow some alternative examination methods. The Annex A (explanatory material) for Section 14.2.1 mentions that non-invasive techniques such as ultrasonic testing (UT) may be used as part of an internal evaluation. Specifically, Annex A.14.2.1(1)(b) of the 2023 edition permits using technologies like ultrasound to measure pipe wall thickness instead of physically inspecting every pipe segment.

This has led many to ask: Can ultrasonic devices replace the 5-year internal inspection? According to guidance from the National Fire Sprinkler Association (NFSA), the answer is technically yes, but with major caveats.

NFSA experts clarify that while ultrasonic testing is "technically an acceptable method” under NFPA 25’s allowances, it is “not the preferred or recommended approach” for a 5-year internal assessment. The standard’s intent is to find internal obstructions, and merely measuring pipe wall thickness with UT may fail to identify many types of obstruction hazards. In short, NFPA 25 gives leeway to use UT as a tool, but it doesn’t endorse it as an equal substitute for a direct internal inspection. The following sections explain why.



How Ultrasonic Testing Works (and Why It’s Appealing)

Ultrasonic testing involves using high-frequency sound waves to gauge the wall thickness of metal pipes without cutting them open. A technician applies a sensor to the pipe’s exterior; the device sends an acoustic pulse that travels through the metal and reflects back. By measuring the echo, the device calculates the remaining pipe wall thickness with high precision (often to within thousandths of an inch). UT has been used for years in industries to check for corrosion or thinning in tanks and pipes. In fire sprinkler systems, two forms of ultrasonic technology are commonly referenced:

  • Pulse-echo UT: Sends a straight-beam signal through the pipe wall; the echo from the inner wall indicates thickness loss.
  • Guided wave UT: Sends a wave around the circumference; deviations from a “clean pipe” baseline signal can indicate anomalies like corrosion, ice plugs, or heavy deposits.

The appeal of ultrasonic testing in a sprinkler system assessment is clear: it’s non-invasive and non-destructive. The sprinkler system can often remain in service during testing, avoiding the downtime and disruption of shutting down, draining water, and disassembling pipes. Technicians can potentially take measurements at many points on various pipes without removing a single flange or pipe section. For building owners and facility managers, this promises a faster, less messy process—no pipe cutting, no water spillage, and no foul-smelling stagnant water released into occupied spaces. In sensitive facilities (like hospitals or data centers) or high-rise buildings where extended sprinkler downtime is impractical, UT offers an attractive way to “peek” inside the system with minimal disturbance.

Proponents of UT argue it’s a cost-effective screening tool—find the worst spots with UT, then open up only those areas for cleaning or pipe replacement, rather than disassembling pipes blindly. However, despite these advantages, industry authorities urge caution. Ultrasonic testing has significant limitations when used for NFPA 25 internal assessments, and over-reliance could lead to a false sense of security.



Limitations of Ultrasonic Testing in Sprinkler Pipe Assessments

While UT can accurately measure metal thickness, it offers an incomplete picture of a sprinkler pipe’s internal condition. Both NFPA guidance and corrosion experts have highlighted several critical limitations of ultrasonic testing for 5-year assessments:

  • Limited Test Point Coverage: Ultrasonic readings are taken only at specific spots, making it easy to miss localized corrosion elsewhere in the system. Sprinkler pipe corrosion is often concentrated in areas like high points in wet systems or low points in dry systems. A few clean UT readings may overlook serious issues on untested lines. Truly representative testing would require extensive measurements, which is rarely feasible—spot-checking can leave critical blind spots.
  • Test Point Placement Matters: The accuracy of UT depends on exactly where and how the sensor is placed. Corrosion can attack one side of a pipe more than another—such as the top of a wet pipe or bottom of a dry pipe. Testing only one orientation can miss severe pitting elsewhere. NFPA stresses that placement and quantity of test points matter, but realistically it’s difficult to cover all angles without an excessive number of scans.
  • Lack of Visual Data and Foreign Material Detection: UT measures wall thickness but tells you nothing about internal debris. A pipe may have good wall thickness but still be obstructed by loose scale, slime, or foreign objects. NFPA 25 cautions that UT can’t detect these obstructions—yet identifying such materials is the whole point of the 5-year internal inspection. UT simply doesn’t provide the visual context needed to spot blockages.
  • No Assessment of Deposit Severity: Even if UT detects anomalies, it can’t tell you what’s inside the pipe or how serious it is. You still need to open the system to confirm and address any obstruction, undermining the value of non-invasive testing. As one expert put it: if you have to open the pipe anyway, UT hasn’t saved you much.
  • Potential for False Security: Clean UT readings might create a false sense of safety. Corrosion experts warn that UT alone can miss serious issues like heavy tuberculation, leading to premature conclusions that everything is fine. Without visual inspection, you can’t truly confirm system condition.



Direct Visual Inspections: Still the Gold Standard

Ultrasonic testing can be a useful adjunct in a fire sprinkler system’s health evaluation, but it’s not a cure-all. The NFSA’s guidance on 5-year assessments states it plainly: ultrasonic testing devices may serve as a supplementary tool in a broader strategy, but they should not be relied upon as the primary method. Ultrasonic measurements of pipe thickness, while technologically impressive, cannot detect all the enemies lurking inside a sprinkler pipe: the rust flakes waiting to clog a head, the biofilm lining that could spawn MIC, or the stray gasket or debris that somehow entered the system. For that reason, ultrasound should be viewed as one tool in the inspector’s toolbox, not the primary exam.

Emerging technologies (e.g. guided wave UT, acoustic monitoring, even some visual scanning tools) are continuously being explored, and future innovations may enhance our ability to assess pipes without disassembly. However, with current technologies, direct visual inspection remains the most accurate and dependable method for assessing internal pipe conditions. This sentiment is echoed by fire protection professionals across the board, from NFPA technical committees to organizations like NFSA and NICET.

Qualified, NICET-certified technicians understand that shortcuts like UT cannot fully replace opening up the piping. Facility owners should be wary of any approach that skips a proper internal exam. The cost and inconvenience of opening a few pipes every five years is minor compared to the potential consequences of an undetected obstruction in a fire emergency.



Best Practices for a Thorough 5-Year Fire Sprinkler System Assessment

When planning your next 5-year sprinkler system assessment, keep these key points in mind:

  • Follow the Intent of NFPA 25: Ensure the assessment checks for foreign material and obstructions, not just pipe thickness. If you use UT at some points, supplement it with physical inspections at others to physically verify internal conditions.
  • Be Wary of Shortcuts: Don’t accept an assessment that relies solely on ultrasonic readings. As convenient as a no-disassembly inspection sounds, it may leave you with undetected problems.
  • Use Qualified Professionals: Engage fire protection inspectors who are familiar with NFPA 25 and NICET-certified in inspection and testing. They will know how to properly conduct internal assessments and interpret signs of corrosion or blockage. They can also effectively integrate tools like UT or video scopes as needed.
  • Leverage Preventative Services: Consider going beyond the basic inspection requirements. Comprehensive corrosion assessment services—such as internal video scoping and laboratory pipe analysis—can provide a much clearer picture of your system’s overall condition than a simple visual check at two open pipe ends. Taking this proactive approach helps identify issues early and supports more cost-effective, targeted mitigation strategies.



Trust ECS for NFPA-Compliant Fire Sprinkler Inspections

At the heart of every 5-year internal sprinkler inspection is a critical goal: ensuring your system functions flawlessly when lives and property are on the line. While ultrasonic testing can be a helpful supplementary tool, it should never replace the comprehensive insight provided by direct internal evaluations. NFPA 25 underscores the importance of identifying obstructions and internal buildup—something UT alone simply cannot guarantee.

ECS offers a deeper, more proactive approach. From high-resolution internal video scoping to detailed pipe sample analysis and expert corrosion consulting, ECS delivers a full-spectrum inspection process that uncovers what less-invasive methods miss. These services not only meet NFPA 25 requirements but go further—enabling targeted, cost-effective solutions before problems escalate.

Don’t settle for surface-level inspections. Schedule a comprehensive corrosion assessment with ECS to protect your system, extend its service life, and ensure peak fire readiness for years to come.
